Select between two USB host computers, extend USB devices up to 100 meters over a single CAT6a cable, and connect peripherals at both local and remote ends.
USB-C HOST 1 / USB-B HOST 2 · 3 Local TX + 4 Remote RX Ports · RS-232 Pass-Through & API · FSYNC GPIO · Bidirectional 24V PoC
PANIO UE3300_W is a dual-host, multi-port USB extender comprising a transmitter (TX) and receiver (RX). It extends USB 3.2 Gen 1 signals up to 100m / 328ft over a direct CAT6a F/FTP cable, with a theoretical USB interface rate up to 5Gbps and backward compatibility with USB 2.0/1.1.
The transmitter has USB-C HOST 1 and USB-B HOST 2 inputs, with one active host at a time. Connect devices to 3 local TX ports and 4 remote RX ports. RS-232, FSYNC GPIO and bidirectional 24V PoC support system integrators, industrial imaging and professional meeting spaces.
Built for more than a basic single-port USB extension: UE3300_W combines host selection, high-speed transfer, local/remote peripheral connectivity and serial/synchronization interfaces.
SuperSpeed USB extension up to the theoretical 5Gbps interface rate, with USB 2.0 and USB 1.1 backward compatibility.
Extend between TX and RX up to 100m / 328ft using a direct, shielded CAT6a F/FTP straight-through link.
Choose either USB-C HOST 1 or USB-B HOST 2 via automatic switching, a front-panel button or API commands.
Three local ports on TX and four remote ports on RX, combining USB-C and USB-A connections.
Serial pass-through and API command control for professional AV systems and host-selection workflows.
Pass through synchronization signals for industrial camera and machine-vision installations.
Power either the transmitter or receiver with one DC 24V / 3.75A adapter; the far end receives power over the link.
No dedicated extender driver is required for normal USB extension; USB-C SERVICE is provided for firmware updates.
Many basic USB extenders are selected for a single remote peripheral. UE3300_W is designed for installations that require host switching, distributed USB port access and additional control interfaces.
Keep USB-C and USB-B host computers connected, then choose which computer owns the shared peripherals instead of manually changing cables.
Place keyboard/mouse or other USB devices at the transmitter while extending cameras, microphones or other peripherals to the receiver.
RS-232 commands/pass-through, FSYNC signaling and flexible PoC simplify industrial camera, conference and centralized control designs.
One extension pair can serve switching, distributed peripherals or synchronized industrial USB deployments.
Connect a USB-C workstation and a USB-B host PC to one extender, then select the active host from the front panel or your control workflow.
Use TX's three device ports and RX's four device ports to position USB accessories at the appropriate work areas without multiple independent extender pairs.
Integrate RS-232 communication and FSYNC GPIO pass-through where remote machine-vision cameras or AV control systems need auxiliary signals.

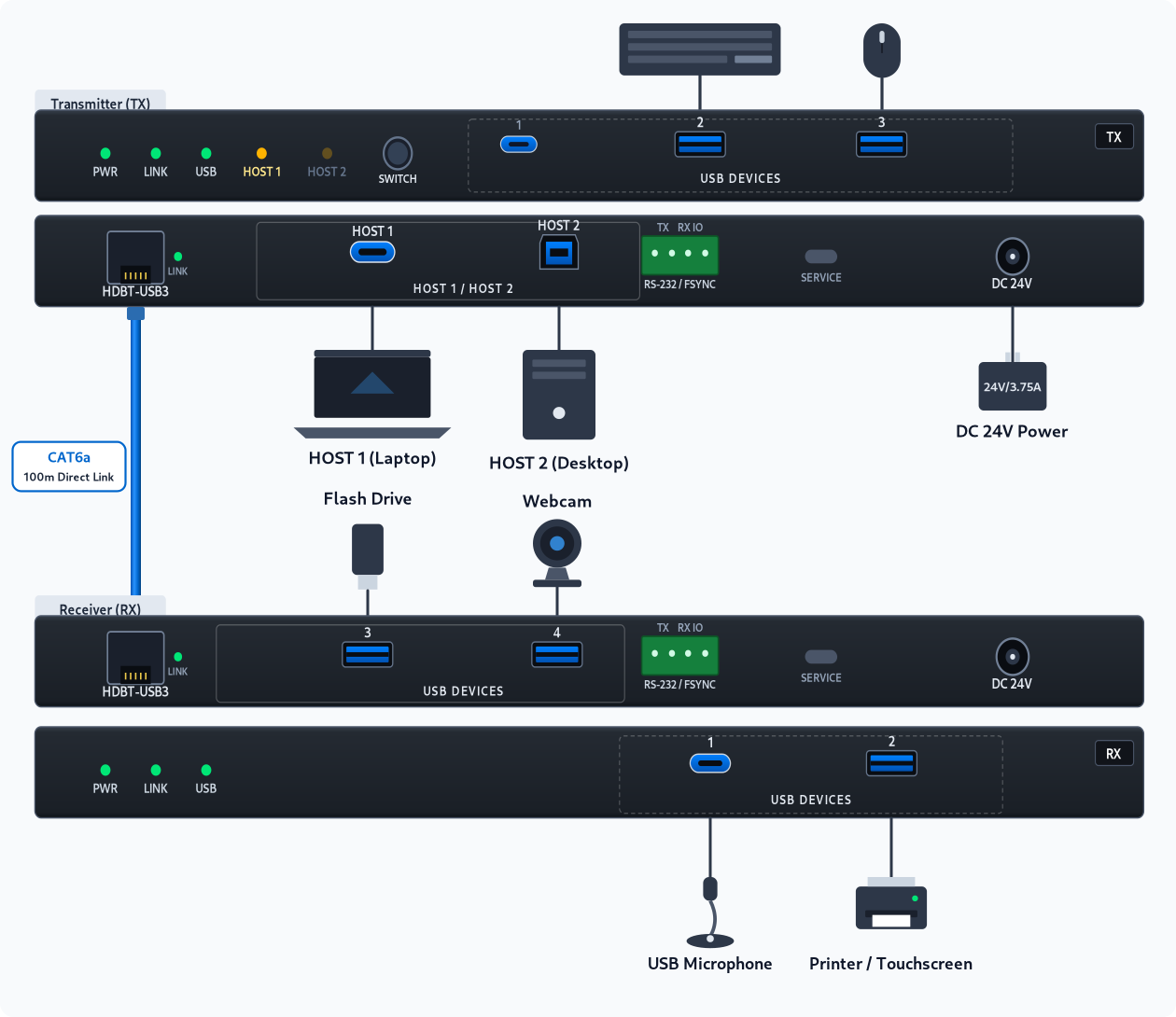

Two computers connect to the transmitter's USB-C and USB-B host inputs. Only the selected host accesses the three local TX device ports and the four RX device ports at the other end of the dedicated CAT6a cable.
Simplified topology. The RJ45 extension ports are not ordinary Ethernet/IP network ports. FSYNC is specified as TX-to-RX signal pass-through. Host selection allows only one active computer at a time.
Designed for USB peripheral placement and long-distance device access in industrial and professional B2B integration projects.
Extend USB cameras from industrial PCs and pass FSYNC GPIO signals through for synchronization workflows.
Connect USB cameras and microphones at remote meeting areas while keeping a host computer in a secure equipment location.
Position instrumentation away from PCs and use two selectable hosts for test or validation stations.
Install USB peripherals at the operating position and maintain computers in cabinets or control areas.
Support typical USB accessories such as keyboards, mice, scanners, flash drives and compatible printers.
Combine switchable USB host control, RS-232 signaling and multi-port USB device extension in one system.
Specifications below follow the supplied PANIO UE3300_W Traditional Chinese product page. Validate peripheral compatibility, USB power budgets and installed cable quality for each project.
| Specification | PANIO UE3300_W |
|---|---|
| USB TRANSMISSION | |
| Product type | 100m / 328ft dual-host switching, multi-port USB 3.2 Gen 1 extender (TX + RX) |
| USB standard | USB 3.2 Gen 1; backward compatible with USB 2.0 and USB 1.1 |
| Maximum data rate | Up to 5Gbps (theoretical USB interface rate; shared extension link) |
| Maximum extension distance | Up to 100m / 328ft using CAT6a F/FTP cable; specified USB host cable length: 1.5m |
| Extension interfaces | 1 × HDBT-USB3 RJ45 on TX and 1 × HDBT-USB3 RJ45 on RX; dedicated link with 24V PoC |
| Host switching methods | Automatic selection / transmitter front-panel button / RS-232 API commands |
| Data processing | Hardware acceleration for signal synchronization and bulk data transfer |
| TRANSMITTER (TX) | |
| Upstream host inputs | HOST 1: 1 × USB-C female (24-pin); HOST 2: 1 × USB-B female (9-pin); one active host at a time |
| Local USB device ports | 1 × USB-C + 2 × USB-A (3 ports total) |
| TX USB port power | USB-C Device 1: up to 5V / 1A; USB-A Device 2–3: up to 5V / 1.5A each |
| Other TX interfaces | 1 × HDBT-USB3 RJ45, 1 × RS-232, 1 × FSYNC, 1 × USB-C SERVICE, 1 × DC 24V |
| RECEIVER (RX) | |
| Remote USB device ports | 1 × USB-C + 3 × USB-A (4 ports total) |
| RX USB port power | USB-C Device 1 and USB-A Device 2: up to 5V / 1A each; USB-A Device 3–4: up to 5V / 1.5A each |
| Other RX interfaces | 1 × HDBT-USB3 RJ45, 1 × RS-232, 1 × FSYNC, 1 × USB-C SERVICE, 1 × DC 24V |
| CONTROL, POWER & ENVIRONMENT | |
| RS-232 | 3-pin 3.5mm terminal block; serial pass-through and API control; selectable 4800–115200bps, 8N1 |
| FSYNC GPIO | Synchronization-signal pass-through (TX to RX); specified default signal level: 0–5V |
| SERVICE interface | USB-C firmware upgrade and internal command/debug port; USB 2.0 support |
| Power input | DC 24V / 3.75A; bidirectional PoC (power TX or RX) |
| Maximum power consumption | TX: 23W; RX: 35W |
| ESD protection | IEC 61000-4-2: ±8kV air discharge / ±4kV contact discharge |
| Enclosure | Black metal housing |
| Dimensions | TX and RX: 140 × 75 × 23mm each (L × W × H) |
| Weight | TX approx. 313g; RX approx. 318g |
| Operating temperature | 0°C to 40°C |
| Storage temperature | −20°C to 60°C |
| Humidity | Operating 20%–80% RH; storage 10%–90% RH, non-condensing |
| Driver requirement | Plug-and-play USB extension; no dedicated extender driver or application software required |
No. The USB-C HOST 1 and USB-B HOST 2 interfaces are selectable upstream connections. Only one host controls the shared USB devices at a time. Switch hosts automatically, using the transmitter front-panel button, or with supported RS-232 API commands.
No. There are seven device ports across the system: three local ports on the transmitter (one USB-C and two USB-A) plus four remote ports on the receiver (one USB-C and three USB-A). The receiver itself provides four device ports.
The stated extension range is up to 100 m (328 ft) over one direct CAT6a F/FTP cable between TX and RX. The theoretical USB 3.2 Gen 1 interface rate is up to 5Gbps. Actual throughput depends on hosts, peripherals, cable quality and site conditions.
No Ethernet/IP switching capability is specified. The HDBT-USB3 RJ45 ports form a dedicated point-to-point extension link. Connect the transmitter directly to the receiver with a straight-through CAT6a F/FTP cable, not through a standard Ethernet switch or router.
No. UE3300_W supports bidirectional 24V Power over Cable (PoC). Connect the supplied DC 24V / 3.75A power adapter to either TX or RX; the other unit receives power through the dedicated extension link.
Yes. USB 3.2 Gen 1 is backward compatible with USB 2.0 and 1.1 peripherals. The system also supports RS-232 pass-through/API control and FSYNC GPIO signal pass-through for synchronization applications, with a specified default FSYNC level range of 0–5V.
The USB extension function is designed for plug-and-play use without dedicated extender software or drivers. Some connected USB peripherals may still require their own device-specific drivers.
Note: The package listing is translated from the supplied UE3300_W page. Confirm actual accessories and whether English-language PDF files are hosted before releasing the page.
