What functions does PANIO KH7000_Up combine?
It combines video wall splicing, multi-window display, matrix signal routing, AV over IP extension, KVM operation, live preview, scene storage and simple centralized control in one distributed platform.
PANIO Taiwan R&D · Professional AV over IP
KH7000_Up 4K AV over IP Integrated Video Wall Solution
What Is PANIO KH7000_Up?
KH7000_Up is a Taiwan-developed, software-defined professional AV platform designed to replace separate video wall processors, multiviewers, matrix switchers, KVM extenders and basic control interfaces with one scalable distributed system. Each endpoint can be configured through software, making the architecture flexible for both small installations and larger multi-room deployments.
1
Video Wall Processor
Create flexible splicing layouts, independent displays and mixed wall configurations.
2
Multi-View Processor
Show up to 16 independent signal sources on one screen with free layout control.
3
Matrix Switcher
Route any available source to one or multiple outputs through a many-to-many matrix.
4
AV & KVM over IP
Distribute video, audio, keyboard, mouse and control signals over Gigabit IP networks.
5
Central Control & Preview
Preview signals, recall scenes and execute routing from a simple software interface.
Recommended Application Scenarios
The multifunction architecture is suitable wherever operators need to view many sources, route content quickly and control multiple systems from a central position.
Command and Emergency Centers
Combine maps, dashboards, cameras, communications and PC applications on video walls and operator screens.
Security and Monitoring Rooms
Display many camera feeds, enlarge priority sources and route selected content to incident-response displays.
Broadcast and Production
Preview multiple sources, build multiview layouts and switch content without visible black-screen delay.
Corporate War Rooms
Share presentations, data dashboards, remote meeting sources and decision-support content across multiple screens.
Industrial Control Centers
Integrate operational PCs, production data, alarms and monitoring video with central KVM and hardware triggers.
Exhibition and Digital Signage
Create large-format video walls, mixed display zones and scheduled scene layouts for visitor-facing spaces.

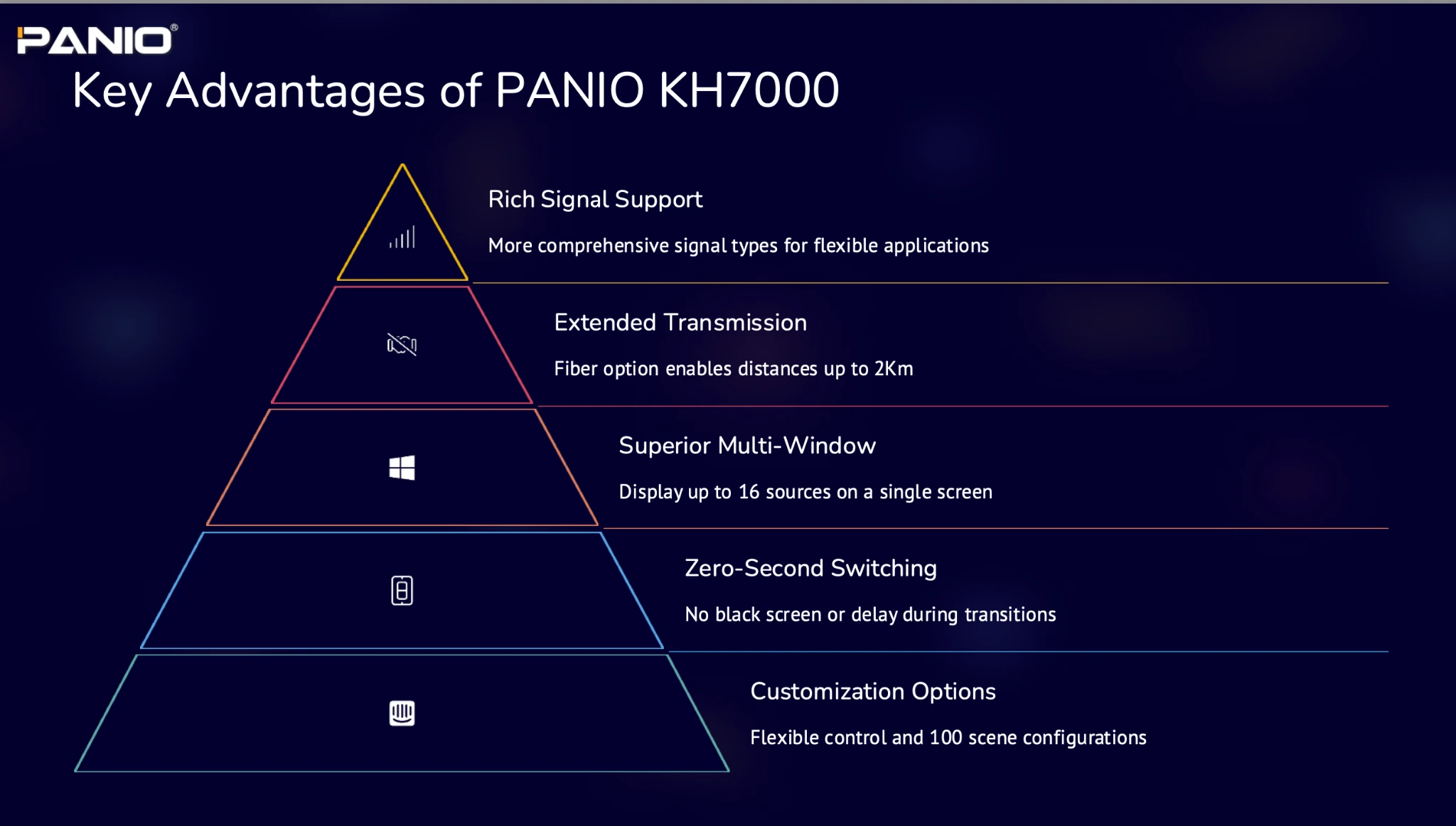

Deployment and Capability Summary
| Capability | KH7000_Up Application Value |
|---|---|
| Primary Functions | Video wall splicing, multi-window processing, matrix switching, AV over IP, KVM, preview and central control |
| Maximum Video Resolution | 3840 × 2160 at 30Hz, backward compatible with standard resolutions |
| Multi-Window Capacity | Up to 16 independent sources on one display |
| Scene Management | Up to 100 saved scene configurations with quick recall |
| Switching Experience | Zero-second seamless switching with no visible black-screen transition |
| Copper Distance | Up to 150 m over Cat6 network cabling |
| Fiber Distance | Up to 2 km with optional optical module |
| Network Infrastructure | 1G Ethernet switch with IGMP support; PoE switching is recommended where appropriate |

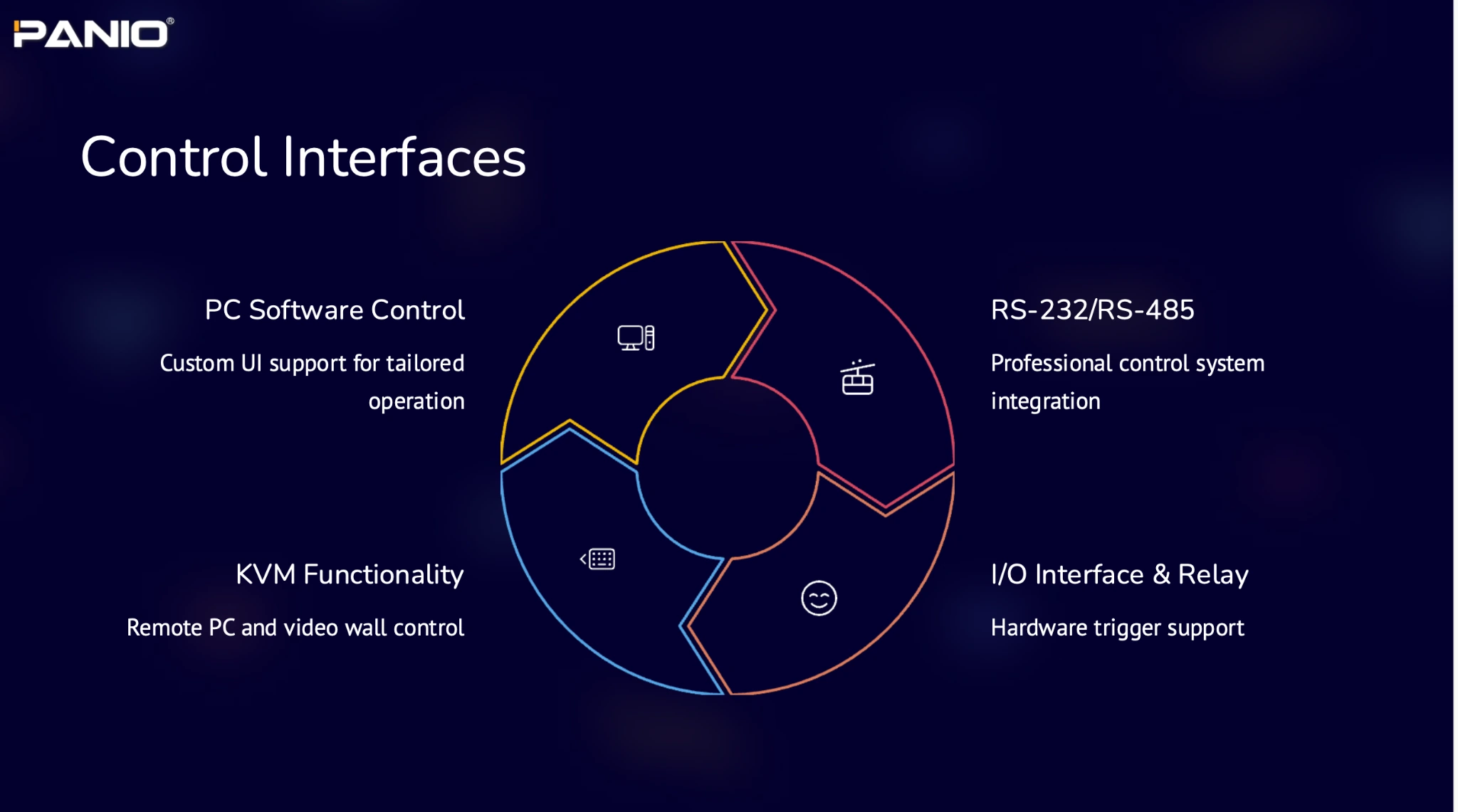

| Control Interfaces | PC software, RS-232, RS-485, I/O, relay, IR and KVM |
| Power Options | 12V DC or standard PoE |
| Endpoint Size | 193 × 100.5 × 25 mm |
Network planning note: For reliable AV over IP performance, use a properly configured Gigabit IGMP switch and confirm bandwidth, multicast, PoE and fiber-module requirements before deployment.
Developed with PANIO Taiwan R&D and System Engineering
PANIO focuses on professional AV integration, system compatibility and application-driven design. KH7000_Up is positioned as a multifunction platform for projects that need video wall processing, multi-view, matrix routing, AV over IP transmission, KVM operation and straightforward central management in one architecture.
For OEM, ODM and project integration, PANIO can support architecture planning, signal-flow review, network topology evaluation and application-specific UI or control requirements.
Why Integrators Choose KH7000_Up
- One platform reduces the number of separate AV devices.
- Distributed IP architecture supports flexible expansion.
- Preview and scene recall simplify daily operation.
- Multiple control interfaces support project integration.
- Taiwan R&D support helps match real application requirements.
KH7000_Up Frequently Asked Questions
How many sources can be displayed on one screen?
A single output display can show up to 16 independent sources. The software supports window scaling, positioning, stacking and layout adjustment.
Can video wall splicing and matrix switching operate in the same system?
Yes. Sources can be routed to individual displays, multi-window outputs or combined video wall groups through the same networked matrix architecture.
Can the operator preview a source before routing it?
Yes. The control software provides real-time input and output preview for source verification and layout management.
Does KH7000_Up provide simple central control?
Yes. The software can manage routing, video wall layouts, multi-window composition, preview and scene recall. RS-232, RS-485, I/O and relay allow additional integration with hardware or third-party control systems.
What type of network switch is recommended?
A properly configured Gigabit Ethernet switch with IGMP support is recommended. A PoE-capable switch can simplify installation when the deployment design supports PoE.
Plan a KH7000_Up Video Wall and AV over IP System
Send PANIO your number of sources, displays, video wall layout, multi-window requirements, transmission distances and control needs. Our Taiwan R&D and technical team can help review the architecture before deployment.
