Fifth-Generation 4×4 4K60 Seamless Matrix Video Wall Controller
HDMI 2.0 4×4 Matrix | 4K60 4:4:4 | Seamless Switching | Video Wall | Multi-View | Web / APP / TCP/IP / RS-232
CH4413K_B
Products / Matrix Switcher & Video Wall Processor
◆ Taiwan-Based PANIO Professional AV BrandKey Features
Three-in-One AV Processing
Combines a 4×4 HDMI matrix switcher, four-display video wall controller and multi-view display processor in a single professional platform.
4K60 4:4:4 Input and Output
Supports HDMI input and output resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma for detailed professional display applications.
Seamless Source Switching
Reduces visible blank-screen interruption during source changes to maintain a smoother presentation, monitoring and display-wall experience.
Flexible Video Wall Layouts
Supports four-display video wall configurations, independent screen operation and mixed display arrangements for varied project requirements.
Audio Embedding and De-embedding
Four 3.5 mm analog audio inputs correspond to the HDMI inputs, while four analog audio outputs correspond to the HDMI outputs.
Independent EDID Management
Each HDMI input supports independent EDID configuration to improve source-display compatibility and installation stability.
Scene Save and Recall
Store multiple display configurations and recall them quickly for meetings, command workflows, exhibitions and scheduled presentation modes.
Web, APP and TCP/IP Control
Manage routing, display modes and saved scenes through a browser-based interface, mobile APP and network control connection.
Dual RS-232 Integration
Two RS-232 interfaces support integration with professional central control systems and external automation workflows.
Why Choose CH4413K_B?
▸ Matrix, Video Wall and Multi-View
One unit handles signal routing, large-screen splicing and divided-screen presentation, reducing system complexity and equipment count.
▸ Full 4K60 Professional Workflow
Both input and output support up to 4K60 4:4:4, making the unit suitable for modern high-resolution sources and displays.
▸ Fast Operational Changes
Seamless switching and scene recall help operators change sources or layouts quickly without rebuilding the configuration each time.
▸ Integrator-Friendly Interfaces
Front-panel, IR, Web GUI, APP, TCP/IP and RS-232 control options support standalone operation and central-control integration.
▸ Audio Routing Flexibility
Corresponding analog audio inputs and outputs support audio insertion, extraction and external sound-system connection.
▸ Taiwan Brand Support
CH4413K_B is offered under PANIO, a Taiwan-based professional AV brand focused on matrix, video wall, KVM and signal-management solutions.
Detailed Function Description
- CH4413K_B provides four HDMI inputs and four HDMI outputs, allowing any connected source to be routed to any connected display through a 4×4 matrix architecture.
- Inputs and outputs support resolutions up to 3840 × 2160 at 60Hz with 4:4:4 chroma and backward compatibility with lower video formats.
- HDMI 2.0 and HDCP 2.2 / 1.4 compatibility support professional 4K signal distribution across meeting, control, monitoring and presentation systems.
- Seamless switching minimizes visible interruption when changing sources, helping maintain continuous on-screen operation.
- The built-in video wall function supports up to four displays, while multi-view and mixed display configurations provide flexible visual presentation.
- Each HDMI input has an independent EDID setting to improve compatibility among sources, matrix processing and connected display devices.
- Four 3.5 mm audio inputs support external audio embedding, and four 3.5 mm audio outputs support analog audio de-embedding.
- Multiple scenes can be saved and recalled for frequently used routing and display layouts.
- Front-panel backlit buttons and status indicators provide clear operation in professional equipment rooms and control environments.
- Power-off memory restores the previous operating configuration after the system is restarted.
- Control methods include front-panel buttons, IR remote, Web GUI, mobile APP, TCP/IP and RS-232.
Flexible Visual Configuration
CH4413K_B is designed for systems that need to switch between standard matrix routing, a unified video wall and divided-screen presentation without replacing the central processor.
4×4 Matrix Routing
Route any of four HDMI sources to any of four HDMI outputs for one-to-one, one-to-many or cross-routed signal distribution.
Four-Display Video Wall
Combine up to four connected displays into a larger visual canvas for command, monitoring, exhibition and presentation environments.
Multi-View and Mixed Layouts
Use divided-screen or mixed display arrangements when multiple sources need to be presented simultaneously or assigned independently.
Ideal Applications
The 4×4 architecture is intended for professional AV projects that require high-resolution routing, rapid layout changes and flexible four-display presentation.
Command and Control Rooms
Switch operational sources, recall scenes and display information across individual screens or a combined video wall.
Security Monitoring
Route recorders, workstations and monitoring sources to four displays with matrix, wall and multi-view presentation options.
Meeting and Conference Rooms
Present multiple computers, conference hosts and media sources with seamless changes and saved display configurations.
Education and Training
Connect instructor computers and media sources to projectors or displays while adapting the layout to different teaching modes.
Showrooms and Exhibitions
Create large visual presentations, independent product screens or multi-source layouts for changing exhibition content.
AV System Integration
Use Web, TCP/IP and RS-232 control to integrate the processor into professional automation and centralized AV systems.

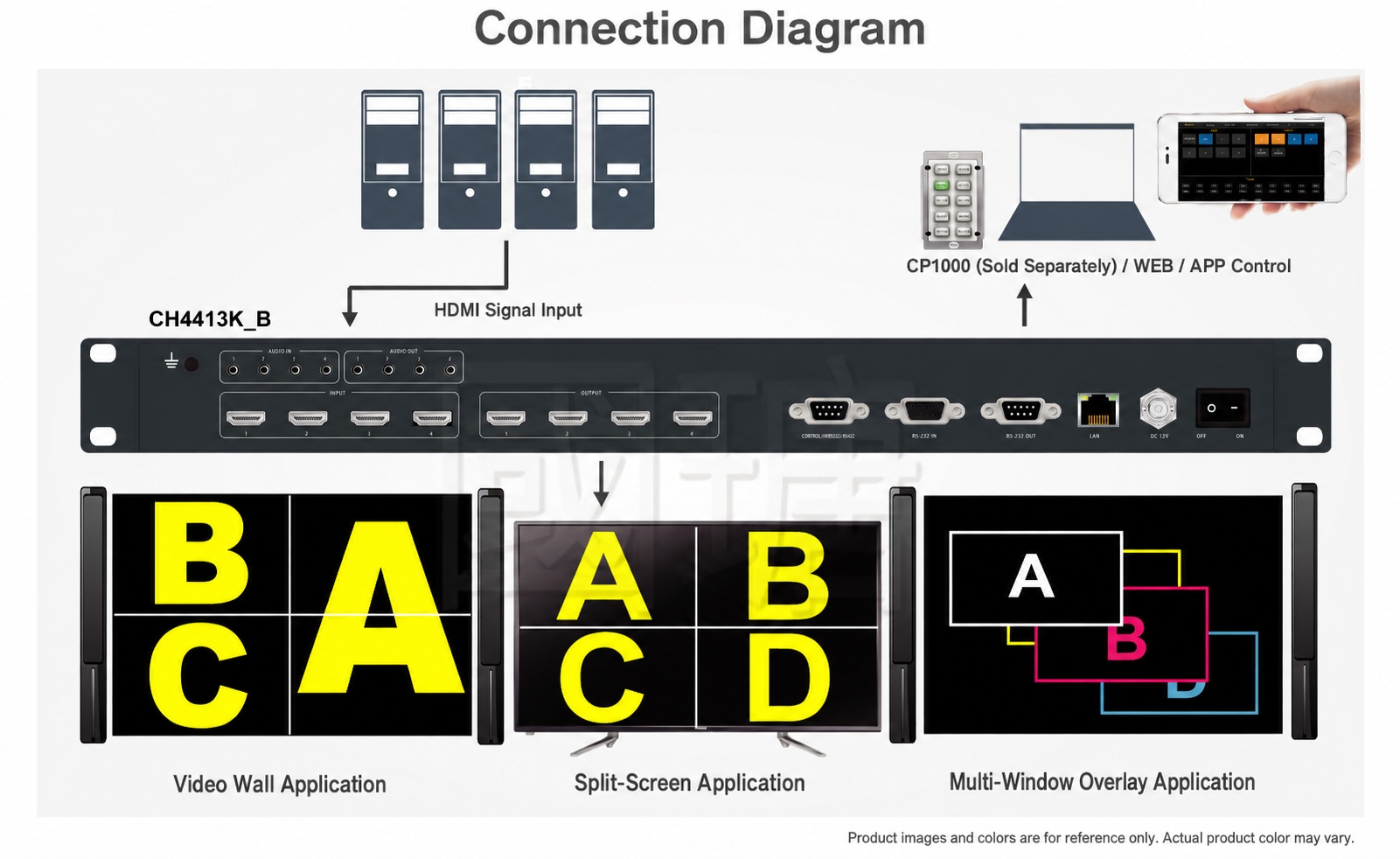

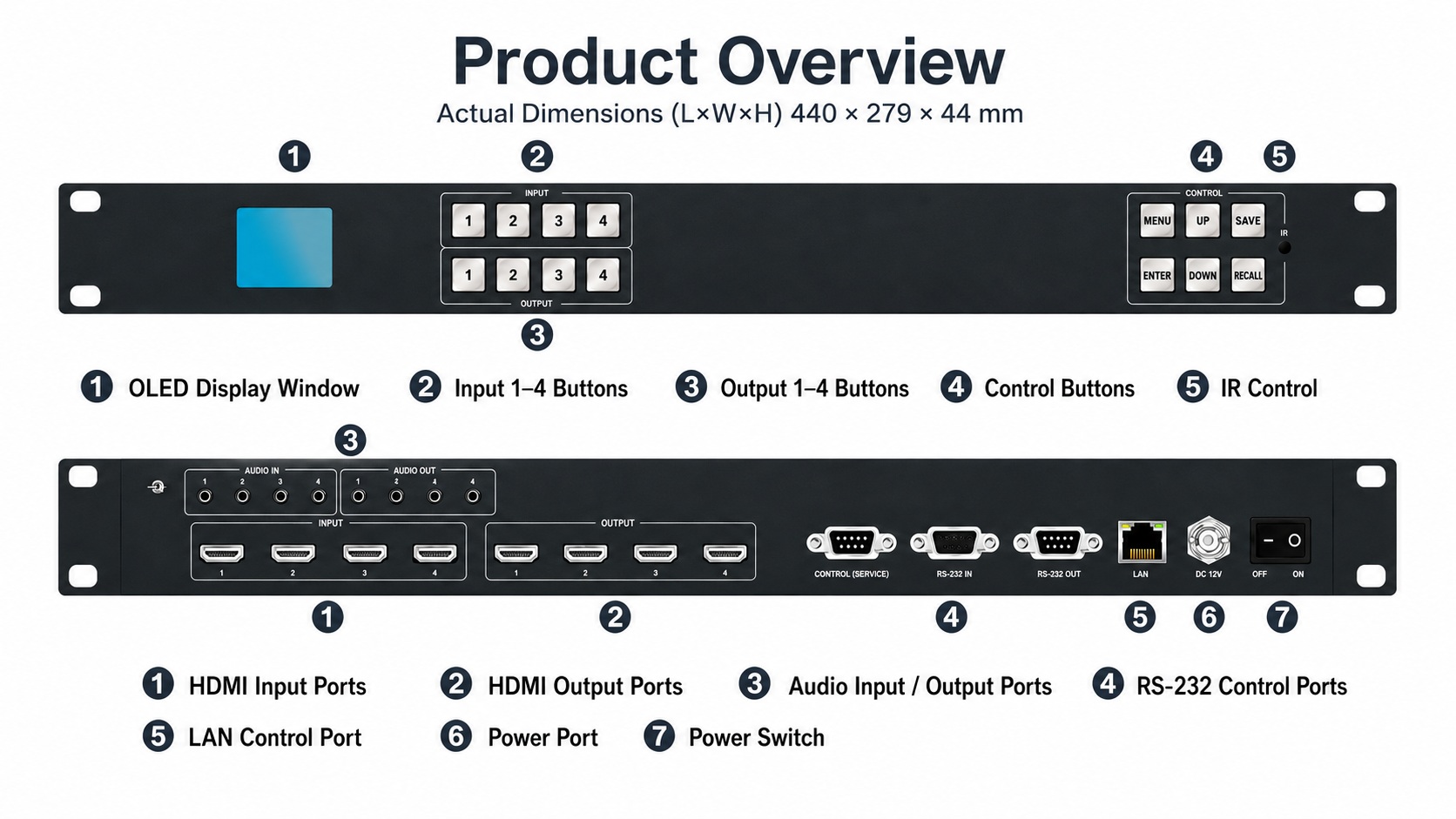

4×4 Signal Flow and Project Positioning
Technical Specifications
The following specifications are organized from the official CH4413K_B product information. Actual interoperability can vary with the source, display, cable quality, termination and total system configuration.
| Specification | CH4413K_B |
|---|---|
| Product Type | Fifth-generation 4×4 HDMI seamless matrix, video wall and multi-view controller |
| HDMI Inputs | 4 × HDMI |
| Analog Audio Inputs | 4 × 3.5 mm |
| HDMI Outputs | 4 × HDMI |
| Analog Audio Outputs | 4 × 3.5 mm |
| Maximum Input Resolution | Up to 3840 × 2160 at 60Hz; backward compatible |
| Selectable Video Wall Output Resolutions | 4K 60Hz, 4K 30Hz, 1080p, 720p and 1366 × 768 at 60Hz |
| Chroma / Image Format | Up to 4K60 4:4:4 |
| Color Depth | 8-bit, 10-bit and 12-bit |
| Color Space | YCbCr and RGB |
| Video Standards | HDMI 2.0; HDCP 2.2 / 1.4 |
| Main Functions | 4×4 matrix routing, seamless switching, four-display video wall, multi-view / divided-screen presentation, mixed layouts, independent EDID, scene save / recall and power-off memory |
| Audio Functions | HDMI audio with corresponding 3.5 mm analog audio embedding and de-embedding |
| Control Methods | Front-panel buttons, IR remote, Web GUI, APP, TCP/IP and RS-232 |
| RS-232 Interfaces | 2 |
| Power Input | DC 12V / 3A |
| Dimensions | 440(W) × 279(D) × 44(H) mm |
| Weight | 3.4 kg |
| Recommended HDMI Cable Length | Total HDMI cable length, including input and output sides, should be kept within 10 meters for best stability. Use a suitable HDMI extender when a longer distance is required. |
Deployment Notes
- Use certified HDMI cables suitable for 4K at 60Hz to maintain stable image and audio quality.
- Avoid unnecessary cascaded switchers, splitters and adapters that may introduce signal loss or compatibility issues.
- Keep the combined HDMI input and output cable length within 10 meters whenever possible.
- For longer distances, use an appropriate HDMI extender and verify the complete signal path before installation.
- Confirm compatibility in advance when the processor is combined with third-party sources, displays or central-control equipment.
- The IR remote controller is supplied without batteries.
Package Contents
- CH4413K_B Main Unit × 1
- IR Remote Controller × 1 (battery not included)
- Power Cable × 1
- User Manual × 1
CH4413K_B Frequently Asked Questions
Concise answers for system integrators, AV planners, procurement teams and operators evaluating a four-input, four-output 4K60 matrix and video wall processor.
What does CH4413K_B do?
It combines 4×4 HDMI matrix routing, seamless switching, four-display video wall processing and multi-view presentation in one device.
Does it support 4K at 60Hz?
Yes. HDMI inputs and outputs support up to 3840 × 2160 at 60Hz with 4:4:4 chroma, with backward compatibility for lower resolutions.
Can it operate four displays as one video wall?
Yes. It supports a four-display video wall and can also operate independent or mixed display configurations.
Can audio be connected separately?
Yes. Four analog audio inputs and four analog audio outputs support audio embedding and de-embedding alongside the HDMI paths.
What remote-control methods are available?
The processor supports IR, Web GUI, mobile APP, TCP/IP and RS-232, in addition to front-panel operation.
Why is independent EDID useful?
Independent EDID settings allow each input to be configured for the connected source and display environment, helping improve compatibility and stability.
