16×16 HDMI MATRIX · 4K30 SEAMLESS VIDEO WALL PROCESSING

CH1612K

16×16 4K30 Seamless Splicing Matrix

16× HDMI In / 16× HDMI Out · Up to 3840×2160@30Hz · Seamless Switching · Video Wall Splicing · Scaler Output · 16× Audio In / 16× Audio Out · Web / Dual LAN / RS-232 / TCP-UDP / IR / APP

What is PANIO CH1612K?

CH1612K is a professional 16×16 4K30 seamless HDMI matrix with integrated video wall splicing. It accepts 16 HDMI sources and routes them to 16 HDMI outputs while supporting 4K@30Hz input and output, seamless switching, image stitching and scaler-based output resolution management.

Independent 3.5 mm audio input and output channels support audio embedding and de-embedding, while the built-in Web interface allows browser-based operation without installing PC software or drivers.

Designed for professional AV integration

Choose CH1612K when a project requires high-density 16×16 routing, 4K30 display compatibility, seamless source changes, video wall layouts and centralized network / serial control in a single rack-mount platform.

Key Features

Professional 4K30 Matrix & Video Wall Functions

CH1612K integrates 4K matrix switching, image splicing, audio processing and multi-method control for conference, broadcast, command-center and large-screen display systems.

4K30

3840×2160@30Hz

Supports high-definition input and output resolutions up to 3840×2160@30Hz, with lower-resolution formats supported for system compatibility.

16×16

High-Density HDMI Matrix

Sixteen HDMI inputs can be routed across sixteen HDMI outputs for flexible one-to-one, one-to-many and matrix distribution workflows.

Seamless Switching

Designed for seamless source switching to reduce black-screen interruption during live presentations, monitoring and display changes.

WALL

Video Wall Splicing

Create multi-screen splicing layouts directly from the Web interface and assign output screens according to the required wall arrangement.

SCALE

Scaler Processing

Scaler / line-doubling processing supports selectable output resolutions including 720p60, 1080p60 and 4K30.

AUDIO

Audio Embed / De-Embed

Provides 16-channel 3.5 mm audio input for embedding and 16-channel 3.5 mm audio output for de-embedding.

WEB

Browser-Based Control

Built-in B/S architecture Web control enables matrix, scene, splicing and system configuration from a browser without client software.

CTRL

Multi-Method Control

Supports front-panel buttons, IR remote, Web UI, dual RS-232, dual LAN, TCP / UDP commands and APP control.

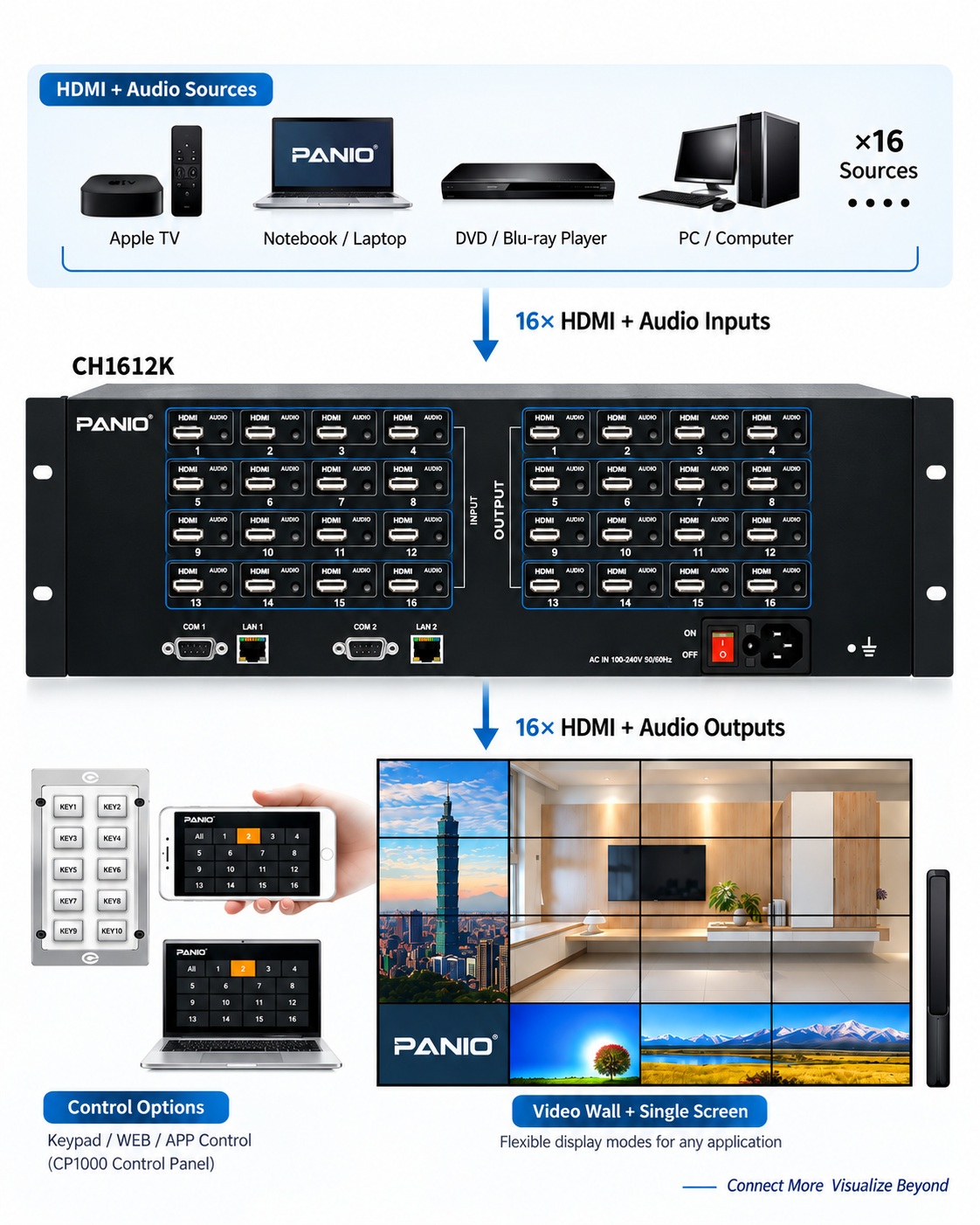

Connection Diagram

CH1612K 16×16 System Connection Example

Typical CH1612K system architecture showing multiple HDMI sources, 16×16 matrix routing, multi-screen video-wall output and centralized Web / APP control.

Why CH1612K

Built for Large Multi-Display AV Systems

▸ Matrix + Video Wall in One Chassis

Use the same platform for standard HDMI routing, independent displays and spliced video-wall output layouts.

▸ 4K30 Input and Output

Supports 4K@30Hz sources and 4K@30Hz output modes for higher-resolution conference, visualization and display applications.

▸ Fast Scene Recall

The device supports scene storage and recall for frequently used routing and display configurations, reducing repetitive setup work.

▸ Dual-Network Architecture

Two independent LAN interfaces support separate network addressing; the two ports must not be configured on the same subnet.

▸ Centralized Matrix Management

The Web management interface can discover and manage multiple compatible matrix devices on the same local network.

▸ Professional Serial Integration

Dual RS-232 interfaces and TCP / UDP command support simplify integration with control processors and external AV equipment.

PANIO Certified

PANIO Matrix Certification & Quality Standard

PANIO matrix certification and quality-standard reference graphic.

PANIO PMC Certified matrix certification system and PQS Certified PANIO quality standard

Functions

Detailed Function Description

16×16 HDMI routing: Assign any HDMI input to one or multiple HDMI outputs through the front panel, remote controller, Web UI, or mobile app.
4K30 support: input supports 480i / 576i / 480p / 576p / 720p / 1080i / 1080p and 4K@30Hz; output modes include 720p@60Hz, 1080p@60Hz and 4K@30Hz.
Seamless switching: source changes are designed for continuous display operation without conventional black-screen switching behavior.
Video wall splicing: configure multi-screen layouts such as 2×2, 3×3 and other project-specific wall arrangements through the Web interface or mobile app.
Scaler processing: output-board resolution can be configured independently to match the connected display environment.
Audio embedding / de-embedding: each input supports HDMI or 3.5 mm audio integration, while each output provides independent 3.5 mm audio de-embedding.
EDID support: EDID functionality improves source / display capability negotiation in professional AV installations.
LCD status feedback: the front-panel LCD displays system status and operation prompts for local maintenance and switching.

Control Platform

Web, LAN, RS-232 and APP Control

The integrated control platform is designed for local operation, browser-based system management and external control-system integration.

Web Login

Factory IP addresses are LAN1: 192.168.0.80 and LAN2: 192.168.1.80. Default username and password are both admin.

Scene Management

Save and recall routing configurations via the front panel, Web interface, or mobile app, with support for up to 40 preset scenes.

Centralized Management

Manage up to 254 compatible matrices on the same LAN through the centralized management interface.

Control Commands

TCP port 5000, UDP port 4000 and RS-232 115200 baud, 8 data bits, 1 stop bit, no parity (8N1).

Applications

Ideal Applications for CH1612K

Designed for professional environments that require high-density HDMI routing, 4K30 display support and flexible multi-screen visualization.

🎥

Video Conferencing

Route multiple conference sources to large-screen displays while recalling predefined layouts for different meeting modes.

📺

Broadcast & TV Engineering

Use seamless switching and multi-output routing in studio monitoring, production and broadcast display systems.

🏢

Conference Halls

Distribute presentation sources to multiple 4K / Full HD screens and create video-wall layouts from one matrix platform.

🖥️

Large-Screen Display Systems

Combine matrix switching and video wall splicing for multi-screen visualization and information presentation.

🎓

Education & Training

Manage multiple teaching sources and displays in lecture halls, training centers and multimedia classrooms.

📡

Command & Control

Centralize source routing, scene recall and multi-screen visualization for monitoring and command-center operations.

System Design

CH1612K Signal Flow

16×16 4K30 Matrix + Video Wall + Audio

System Profile

Video Inputs: 16 × HDMI.
Video Outputs: 16 × HDMI.
Audio Inputs: 16 × 3.5 mm.
Audio Outputs: 16 × 3.5 mm.
Control Interfaces: 2 × RJ45 LAN + 2 × RS-232.
Display Processing: seamless switching, scaler output and video-wall splicing.

Positioning: a high-density 4K30 HDMI matrix and video-wall processor for projects that need 16 sources, 16 displays, flexible wall layouts, independent audio and centralized control.

Technical Data

CH1612K Technical Specifications

Actual performance depends on the complete source, display, EDID and HDMI cable chain. Verify the intended 4K30 / Full HD signal path before final project deployment.

Specification	CH1612K
Product Type	16×16 4K30 seamless HDMI splicing matrix / video wall processor
Video Inputs	16 × HDMI
Audio Inputs	16 × 3.5 mm audio
Video Outputs	16 × HDMI
Audio Outputs	16 × 3.5 mm audio
Control Interfaces	2 × RJ45 LAN, 2 × RS-232
Input Resolutions	480i, 576i, 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, 3840×2160@30Hz
Output Resolutions	1280×720@60Hz, 1920×1080@60Hz, 3840×2160@30Hz
Protocols	HDMI 1.4, DVI 1.0, HDCP 1.4, EDID
Color Space	RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, x.v.Color extended gamut
Video Processing	Seamless switching, image splicing, scaler / line-doubling output processing
Audio Processing	Input audio embedding and output audio de-embedding
Control Methods	Front-panel buttons, IR remote, Web interface, RS-232, LAN, APP, TCP / UDP commands
Default LAN 1	192.168.0.80
Default LAN 2	192.168.1.80
TCP / UDP Ports	TCP 5000 / UDP 4000
RS-232	115200 baud, 8 data bits, 1 stop bit, no parity (8N1)
ESD Protection	±8 kV air discharge / ±4 kV contact discharge
Power Input	AC 220–240V, 50/60Hz
Power Consumption	52 W
Dimensions without Rack Ears	440 × 279.8 × 133.4 mm (W × D × H)
Dimensions with Rack Ears	484.2 × 295.4 × 148.4 mm (W × D × H)
Weight	10.16 kg
Operating Temperature	0°C to 50°C
Storage Temperature	0°C to 50°C

Installation Notes

Deployment and Safety Notes

Ensure the chassis is properly grounded before power-on and use a power source with protective grounding.
Disconnect power before connecting or disconnecting signal cables. Damage caused by live-line operation is not covered by the source manual's warranty terms.
Maintain adequate ventilation around the chassis and keep the device away from excessive dust, moisture, liquids and extreme temperatures.
LAN1 and LAN2 must not be configured on the same subnet.
After changing network settings, save the configuration and restart the matrix so the new IP settings take effect.
Firmware upgrading is a high-risk operation; use the correct upgrade file and never power off the device during the process.

Package

Package Contents

CH1612K Main Unit × 1
IR Remote Controller × 1
Power Cord × 1
Grounding Wire × 1
User Manual × 1

FAQ

CH1612K Frequently Asked Questions

Does CH1612K support 4K input and output?

Yes, the device supports 3840×2160@30Hz on both input and output, alongside 720p and 1080p output modes.

Can CH1612K create a video wall?

Yes. CH1612K supports image splicing and Web-based video-wall configuration. Output screens can be selected and arranged into layouts such as 2×2, 3×3 and other project-specific combinations.

Does source switching cause a black screen?

The product is specified as a seamless switching matrix and is designed to minimize conventional black-screen interruption during source changes.

Can CH1612K be controlled without installing software?

Yes. The built-in B/S architecture provides browser-based Web control without requiring client software or drivers on the PC.

What are the default network settings?

LAN1 is 192.168.0.80 and LAN2 is 192.168.1.80. The two LAN ports must not use the same subnet. The default Web username and password are both admin.

Does CH1612K support external control systems?

Yes. It supports dual RS-232, TCP port 5000, UDP port 4000 and programmable command operation for professional control-system integration.

How is audio handled?

Sixteen 3.5 mm audio inputs support audio embedding, and sixteen 3.5 mm audio outputs support de-embedding for independent external audio routing.

Planning a 16×16 4K30 Matrix or Multi-Screen Video Wall?

For project planning, provide your source count, display count, target video-wall layout, required resolutions, audio routing, network environment and preferred control method. This helps determine the most suitable CH1612K deployment configuration.
